Compact Industrial PC W101M

Ruggedness and compactness combined.



The W101M is an all-in-one industrial computer designed for demanding environments where space is limited but reliability is essential.



With its 3 mm tempered glass capacitive touchscreen, a rugged aluminum enclosure, and simple customization options, it’s perfect for industrial automation and manufacturing workstations.

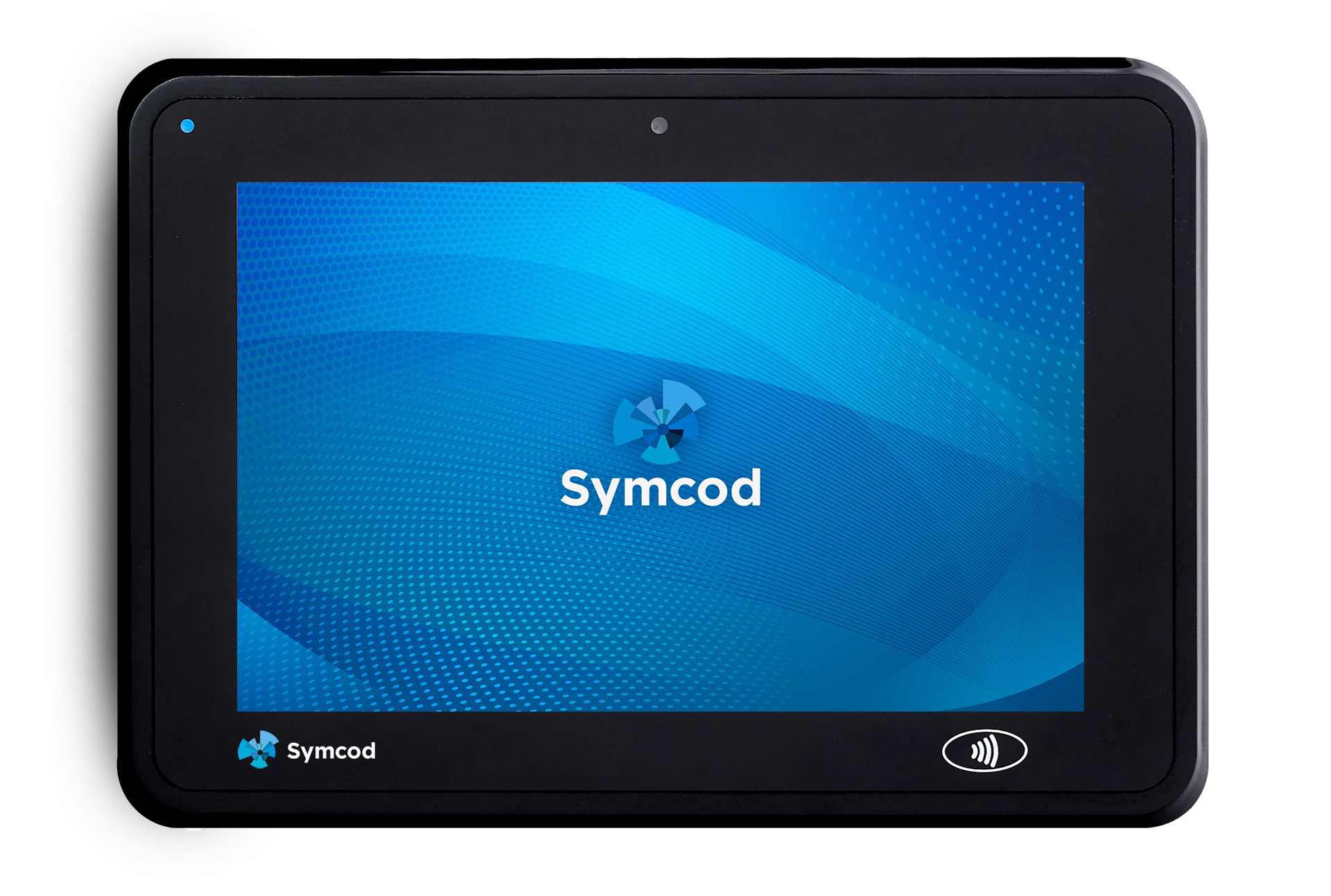

W101M-01

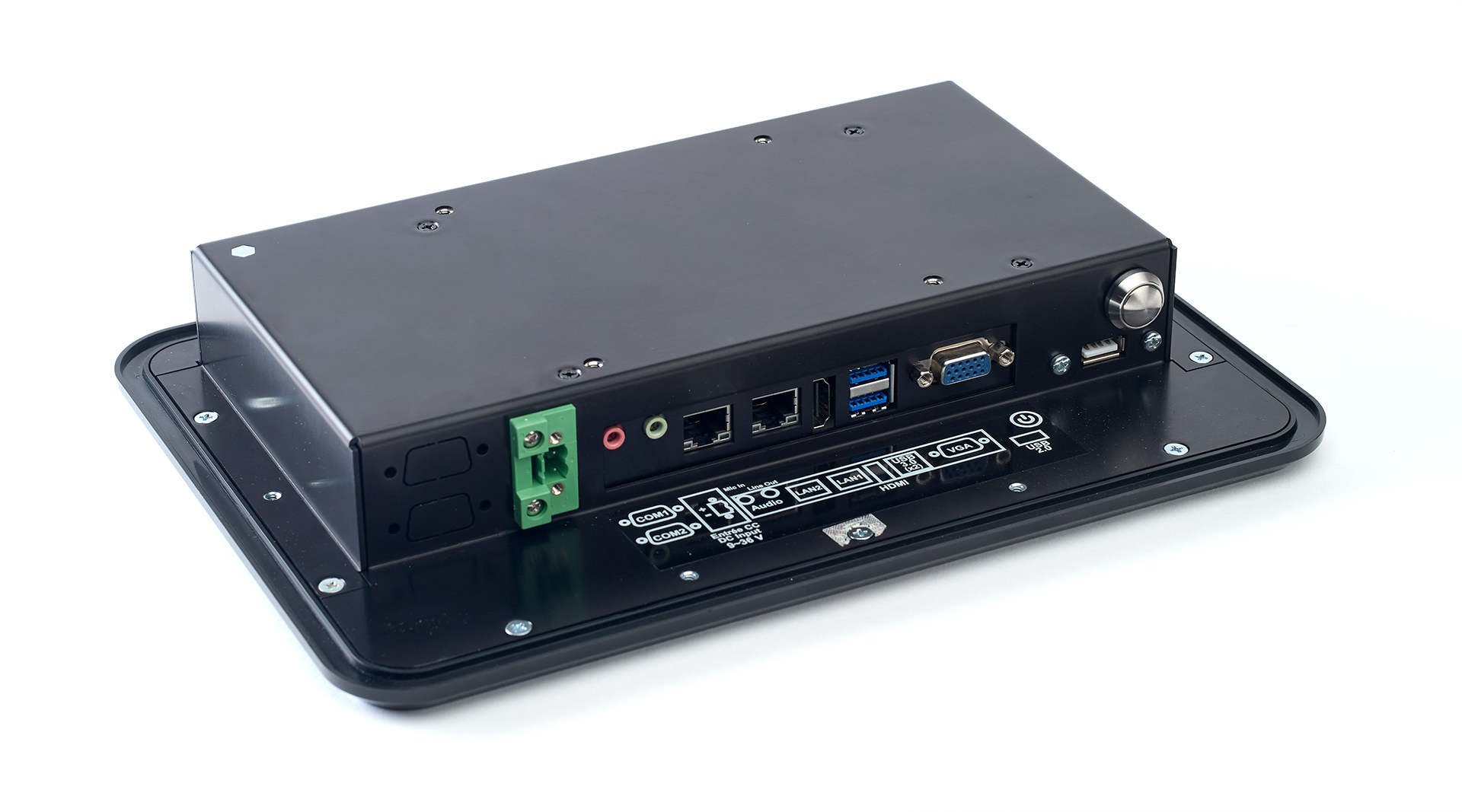

W101M-02

Why Choose the W101M?

  • Ultra-compact format (10.1″ display)
  • Flexible mounting: panel mount with IP66 front or VESA 100
  • Power supply via PoE, terminal block, or external adapter
  • ARM or Intel architecture — supports Linux, Android, and Windows

Symcod Benefits

  • Test without commitment — Demo Unit



  • Adapted to your industrial reality — Personalization



  • Reduce your deployment delays — Fast Delivery



  • For minimal operational downtime — SLA & Service Depot



  • Immediate exchange with our experts — Support & Repairs



  • Extended peace of mind – Extended Warranty

Customize Your W101M to Fit Your Environment

The W101M is ready to be customized for your production environment.



At the time of order, you can choose:

  • Your logo displayed directly on the touchscreen
  • Pre-installed software image with your applications and settings
  • Integrated RFID reader for quick and secure identification



A simple, rugged, and customized industrial computer designed for your specific needs.

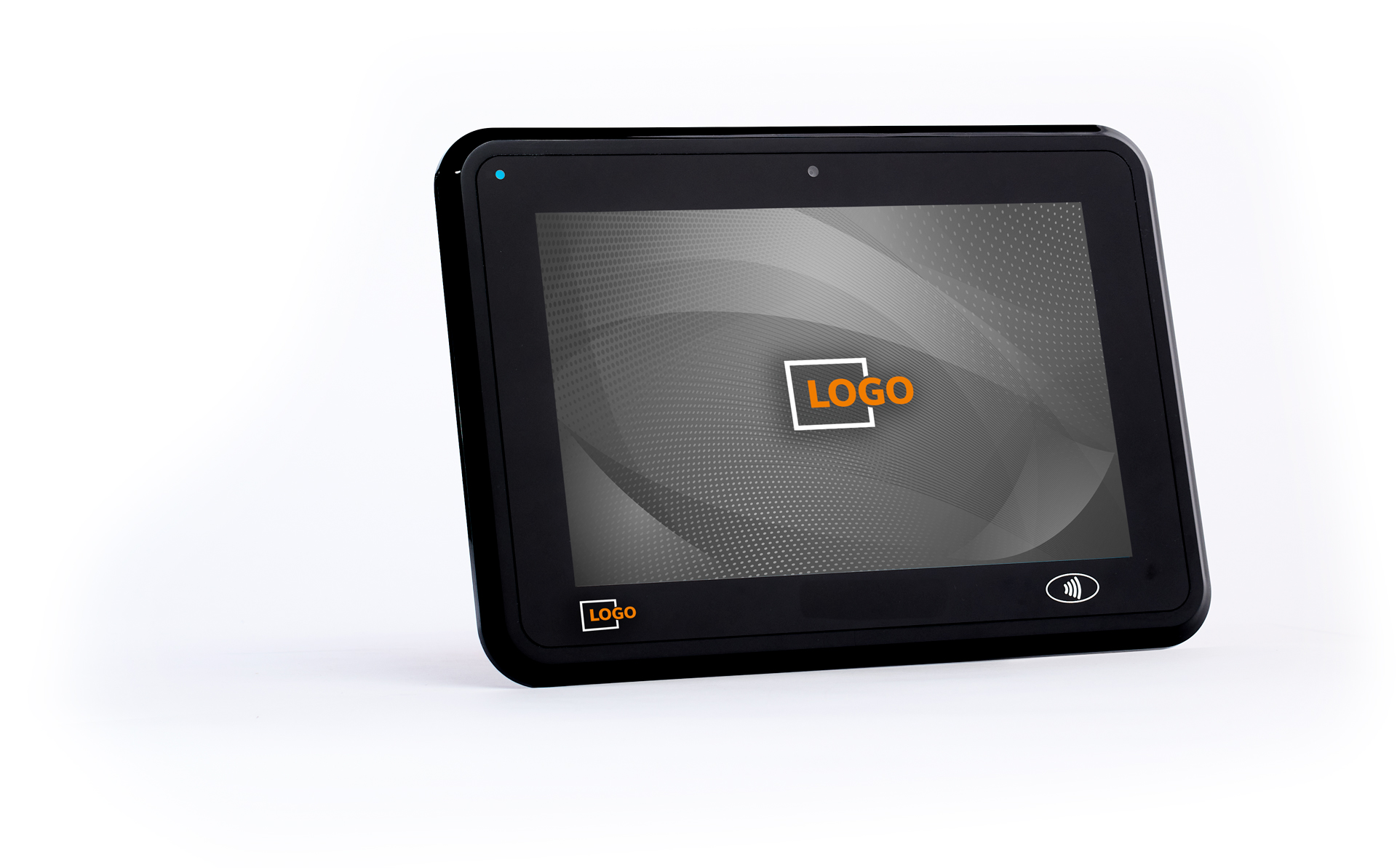

W101M-03

Technical Specifications

Model

W101M

Type

Compact All-in-One Industrial Touchscreen Computer

Ingress Protection

IP50 on stand / IP66 front panel mounted*

Display

10.1″ Projected Capacitive Touchscreen (1280×800) – 350 nits

Glass

3mm Tempered Glass

Power supply

9 to 36 VDC / Removable Terminal Block / External Power Adapter Included / PoE

Operation Conditions

-20 °C* to 55 °C (-4 °F* to 131 °F), 20% to 80% Relative Humidity (Non-Condensing)

Casing

Aluminium and ABS / VESA 100 Mounting or Panel Mounting

Weight

1.5 kg / 3.3 lb

Certifications

CSA / CE / FCC / RoHS

Warranty

2-Year Standard / Optional 3-Year Extended

Processor

ARM Rockchip D3588

Intel Alder Lake N97

RAM

8 GB

8 GB and more

Storage

32 GB

SSD 240 GB and more

Standard I/O

2x LAN, 4x USB, 1x HDMI

2 LAN, 4x USB, 1x SVGA, 1x HDMI, 1x DP

Optional I/O

1x COM

3x COM

OS

Android or Linux Debian

Windows 10/11 or Linux Ubuntu

Wireless

WiFi/Bluetooth included

WiFi/Bluetooth in option

*certain conditions apply

Ideal Applications

  • Compact entry stations for ERP/MRP systems in industrial environments
  • Data consultation stations connected to MES software
  • Lightweight RFID kiosks for fast operator identification
  • Fixed wall-mounted stations for production KPIs visualization
  • Compact HMI interfaces for light automation

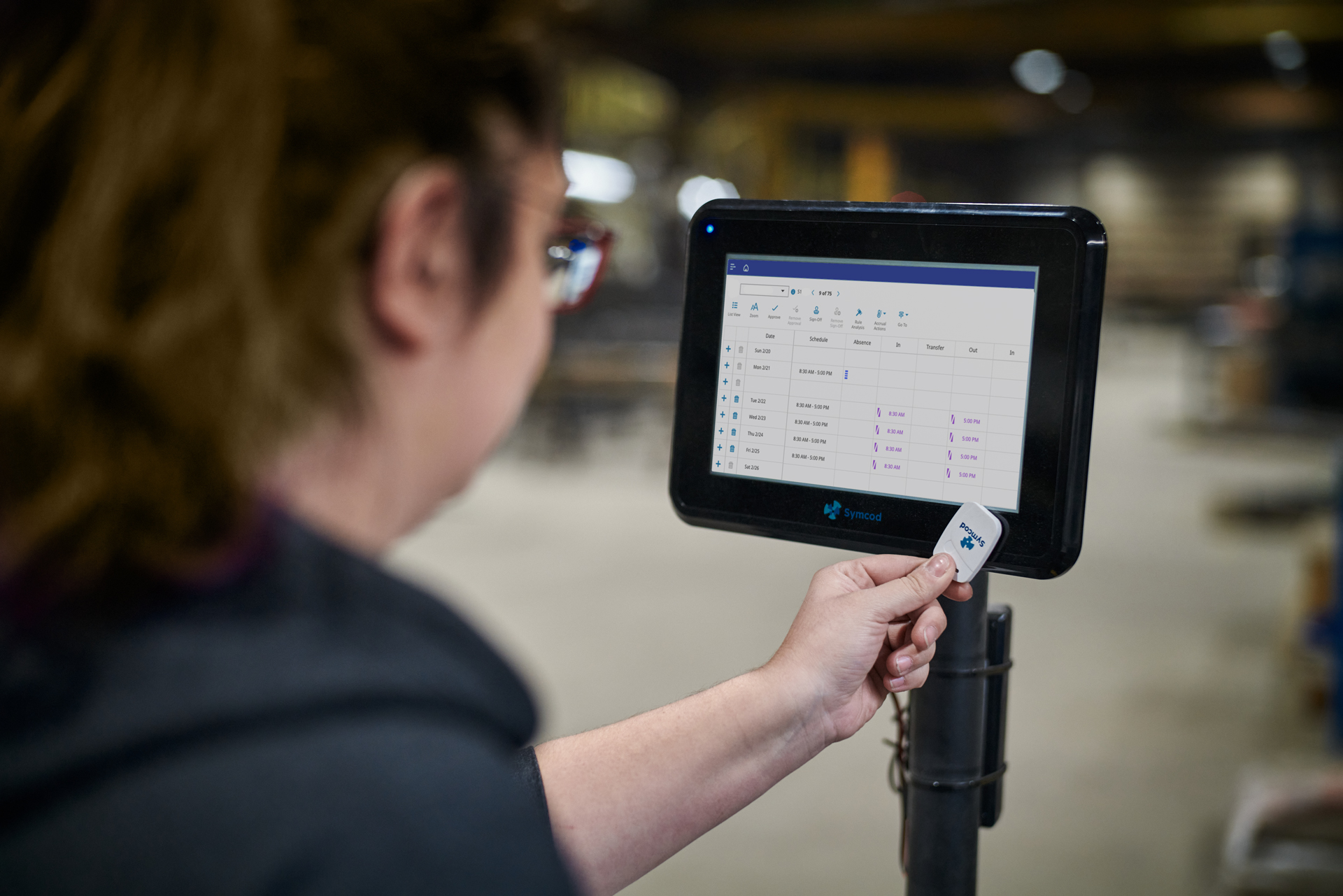

W101M-04

Options & Accessories

  • Internal RFID proximity reader
  • Integrated camera
  • Serial ports for connecting peripherals such as readers or printers
  • Panel installation with IP66 water and dust-resistant front
  • VESA 100 wall mount bracket
  • Pre-installed software image
  • Custom client logo on touch screen

Bring Rugged Reliability to Your Operations

With Symcod, optimize your industrial environment with compact, rugged, and customized solutions.



The W101M is ready to perform where space is tight, but reliability is non-negotiable.
