See bigger. Control better.

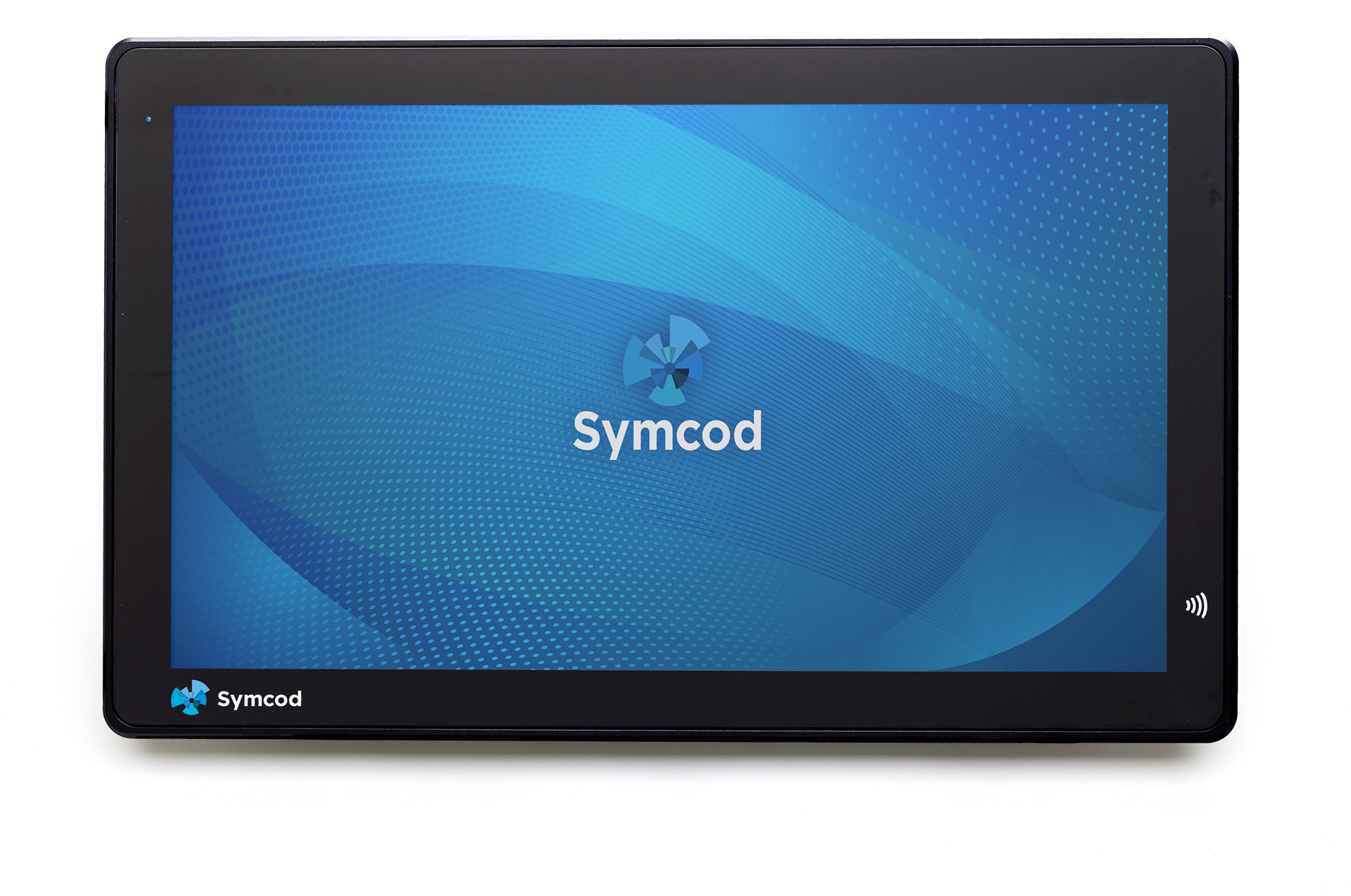

The W238M is the all-in-one industrial computer designed for advanced supervision and critical management in modern industrial environments.
Featuring a large 23.8“ Full HD capacitive touchscreen, rugged design, and multiple customization options, it offers exceptional visual clarity and complete flexibility for complex operations.
Why Choose the W238M?
- Large 23.8″ Full HD touchscreen for optimal visualization of critical data
- Functional modularity for quick access to RFID, control buttons, and side handles
- Rugged and versatile mounting solutions to tackle every industrial challenge: panel mount, VESA wall mount, or ergonomic VESA arm with centralized cable management
- Fanless design for uncompromised 24/7 reliability
Symcod Benefits
- Test without commitment — Demo Unit
- Adapted to your industrial reality — Personalization
- Reduce your deployment delays — Fast Delivery
- For minimal operational downtime — SLA & Service Depot
- Immediate exchange with our experts — Support & Repairs
- Extended peace of mind – Extended Warranty
Modularity Concept for Industrial PCs
The W238M is designed to maximize productivity and operational comfort.
At the time of order, you can customize:

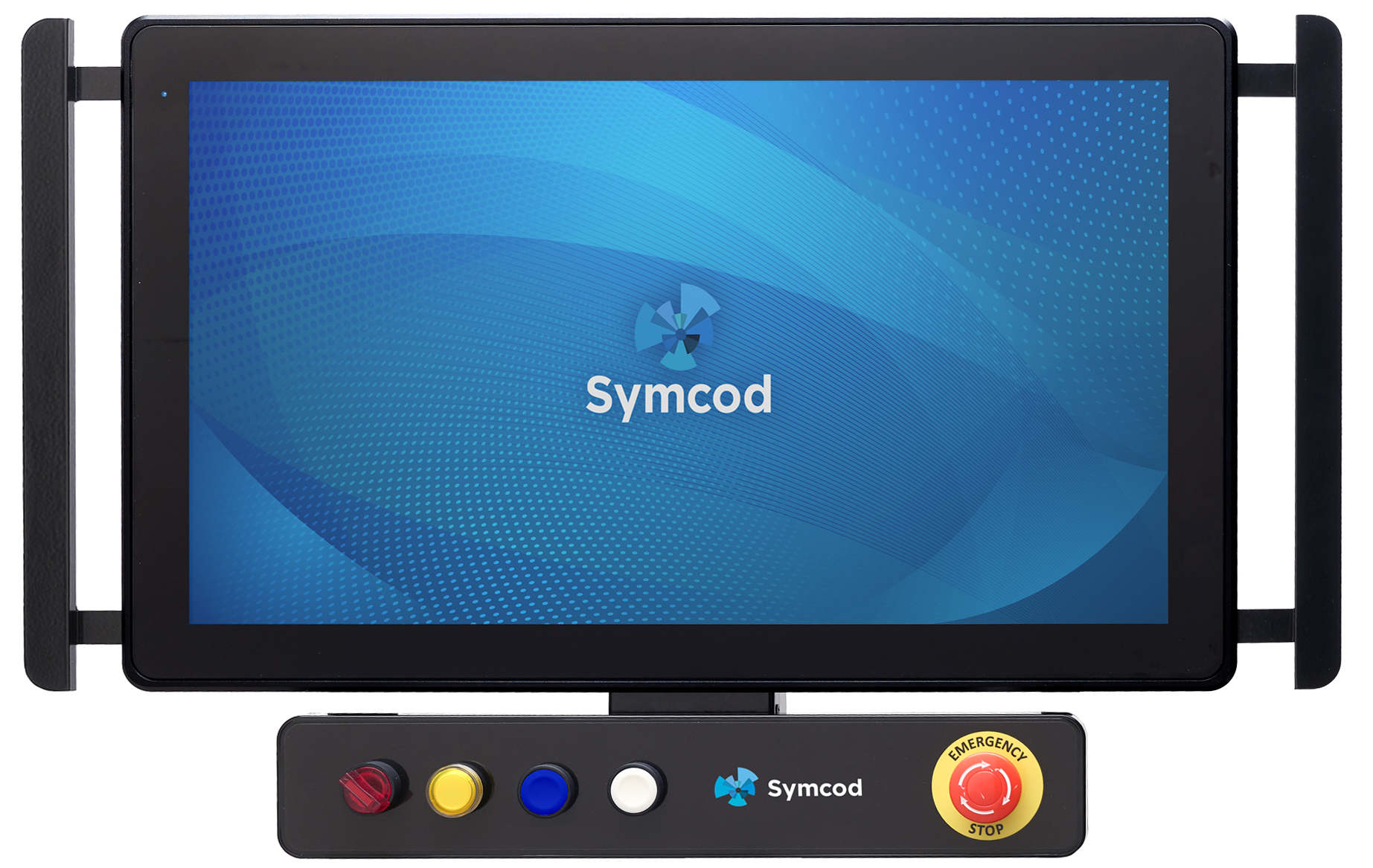

- Mechanical controls ready for action: customizable control panel with emergency stop, start/stop, and alarm functions for immediate interventions in industrial environments.
- Ergonomics and handling without compromise: rugged side handles for easy manipulation, even in demanding environments.
- Centralized cable management: VESA mounting arm with integrated cable routing for a clean and secure workspace.
- Complete brand customization: display your logo directly on the touchscreen and pre-install your software image for fast and consistent on-site deployment.
A large-format, modular, rugged computer designed for demanding industrial supervision.
Technical Specifications
| Model |
W238M |
|
| Type |
All-in-One Industrial Touchscreen Computer |
|
| Ingress Protection |
IP50 on stand / IP66 front panel mounted* |
|
| Display |
23.8″ Projected Capacitive Touchscreen (1280×800) – 350 nits |
|
| Glass |
3mm Tempered Glass |
|
| Power supply |
AC with external 120/240 VCC 60/50 Hz, power supply not included, |
|
| Operation Conditions |
-20 °C* to 55 °C (-4 °F* to 131 °F), 20% to 80% Relative Humidity (Non-Condensing) |
|
| Casing |
Aluminium / VESA 100 Mounting or Panel Mounting |
|
| Weight |
6.85 kg / 15.1 lb |
|
| Certifications |
CSA / CE |
|
| Warranty |
2-Year Standard / Optional 3-Year Extended |
|

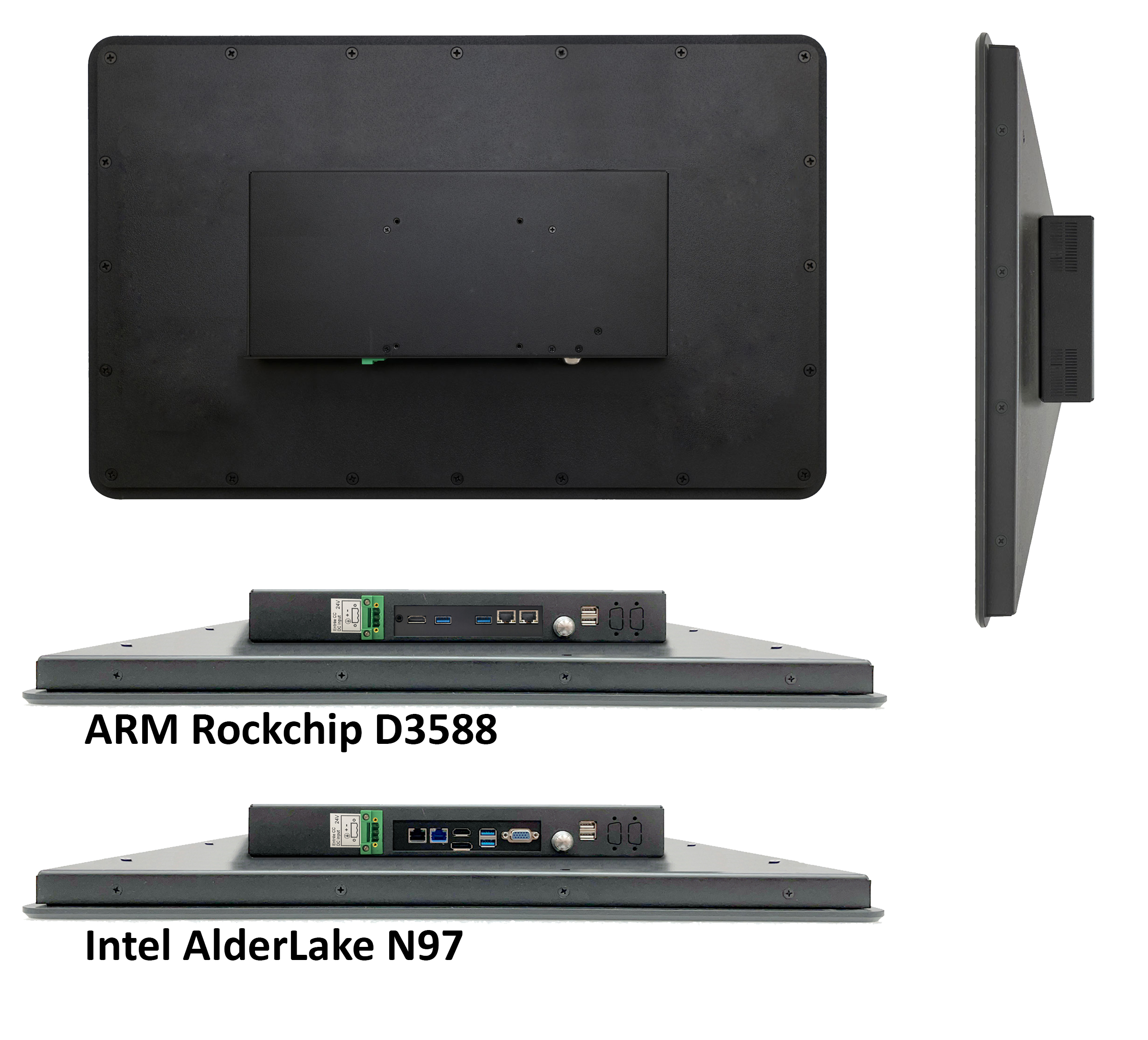

| Processor |
ARM Rockchip D3588 |
Intel Alder Lake N97 |
| RAM |
8 GB |
8 GB and more |
| Storage |
32 GB |
SSD 240 GB and more |
| Standard I/O |
2x LAN, 4x USB, 1x HDMI |
2 LAN, 4x USB, 1x SVGA, 1x HDMI, 1x DP |
| Optional I/O |
1x COM |
3x COM |
| OS |
Android or Linux Debian |
Windows 10/11 or Linux Ubuntu |
| Wireless |
WiFi/Bluetooth included |
WiFi/Bluetooth in option |
*certains conditions required
Ideal Industrial Applications
- SCADA supervision stations with large interactive dashboards
- HMI interfaces connected to ERP/MRP/MES systems
- Production control stations for real-time KPI visualization
- High-performance industrial RFID kiosks
- Quality management stations in complex production environments
Options & Accessories
- Intel or ARM architecture
- Integrated RFID reader
- Control button module
- Ergonomic side handles
- Centralized cable management
- IP66 panel installation kit
- VESA 100 wall mount
- Adjustable ergonomic stand
- Pre-installed software image
- Custom client logo
Downloads
Related Products
Supervise Your Operations Without Compromise
With Symcod, visibility and precision are at the heart of your industrial operations.
The W238M combines a large screen, smart modularity, and unmatched ruggedness to boost your performance.
