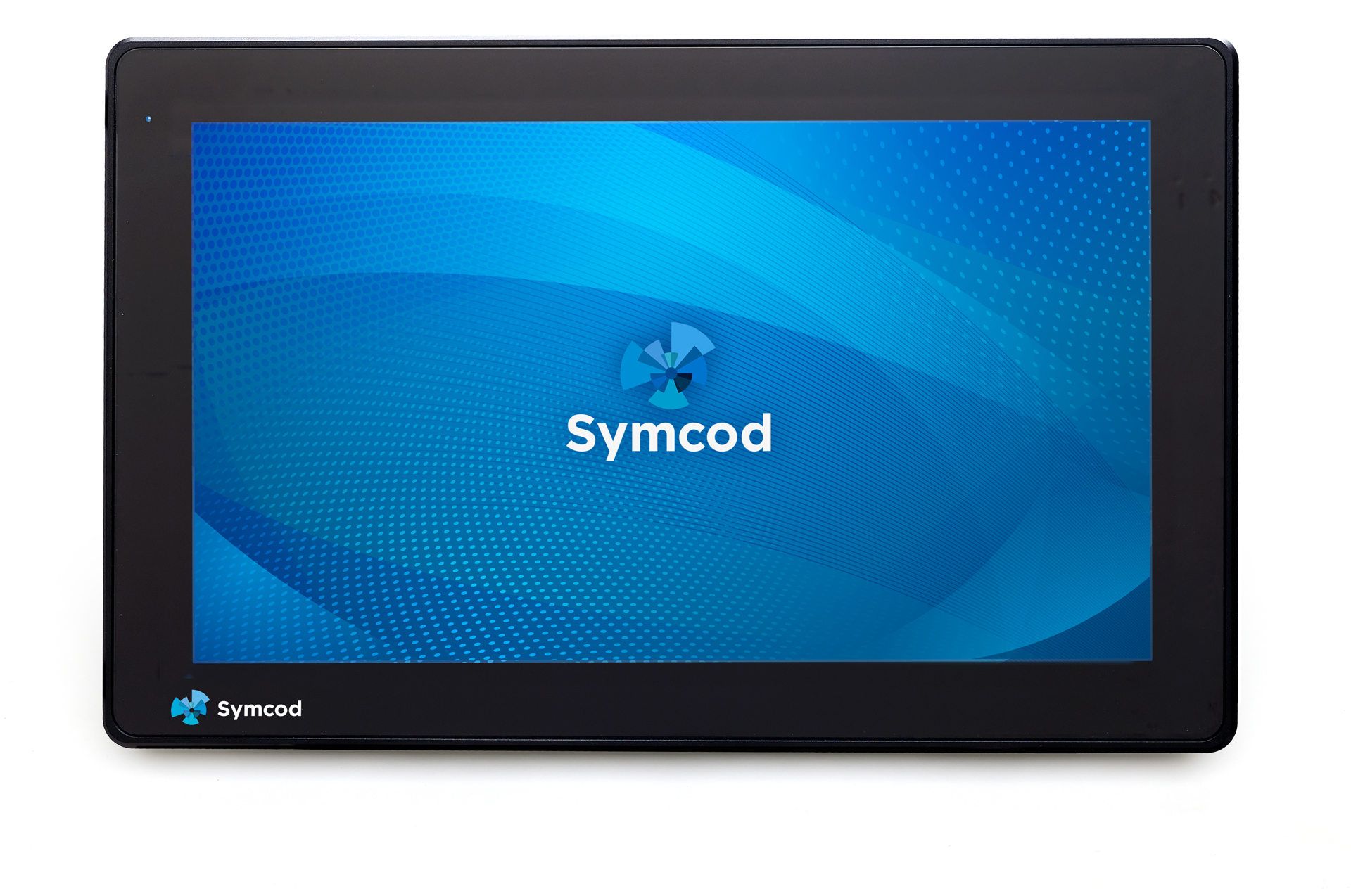

18.5-Inch Industrial Touchscreen Monitor W185M-DP

Your reliable production display, right at the heart of operations.

Built to withstand the toughest factory floor challenges, the W185M-DP is your ideal partner for workstations, KVM systems, and rugged screen duplication setups.

Featuring an 18.5 HD+ touchscreen, impact resistance, vibration resistance, and tolerance to extreme temperatures, it fits seamlessly into automated production lines, robotic cells, and high-performance industrial remote systems.





W158M-DP_01
W185M-bouton-poignees

Why Choose the W185M-DP?

  • W185M-boutons-poignees.jpg18.5″ capacitive HD+ touchscreen: perfect for displaying production drawings, schematics, and alarms
  • Ideal for screen duplication or as a secondary industrial monitor
  • KVM compatibility for quick access to multiple machines
  • Rugged use: withstands vibrations, shocks, heat, and cold

Symcod Benefits

  • Test without commitment — Demo Unit



  • Adapted to your industrial reality — Personalization



  • Reduce your deployment delays — Fast Delivery



  • For minimal operational downtime — SLA & Service Depot



  • Immediate exchange with our experts — Support & Repairs



  • Extended peace of mind – Extended Warranty

Customize Your Industrial Display

The W185M-DP adapts to your environment with a variety of options:

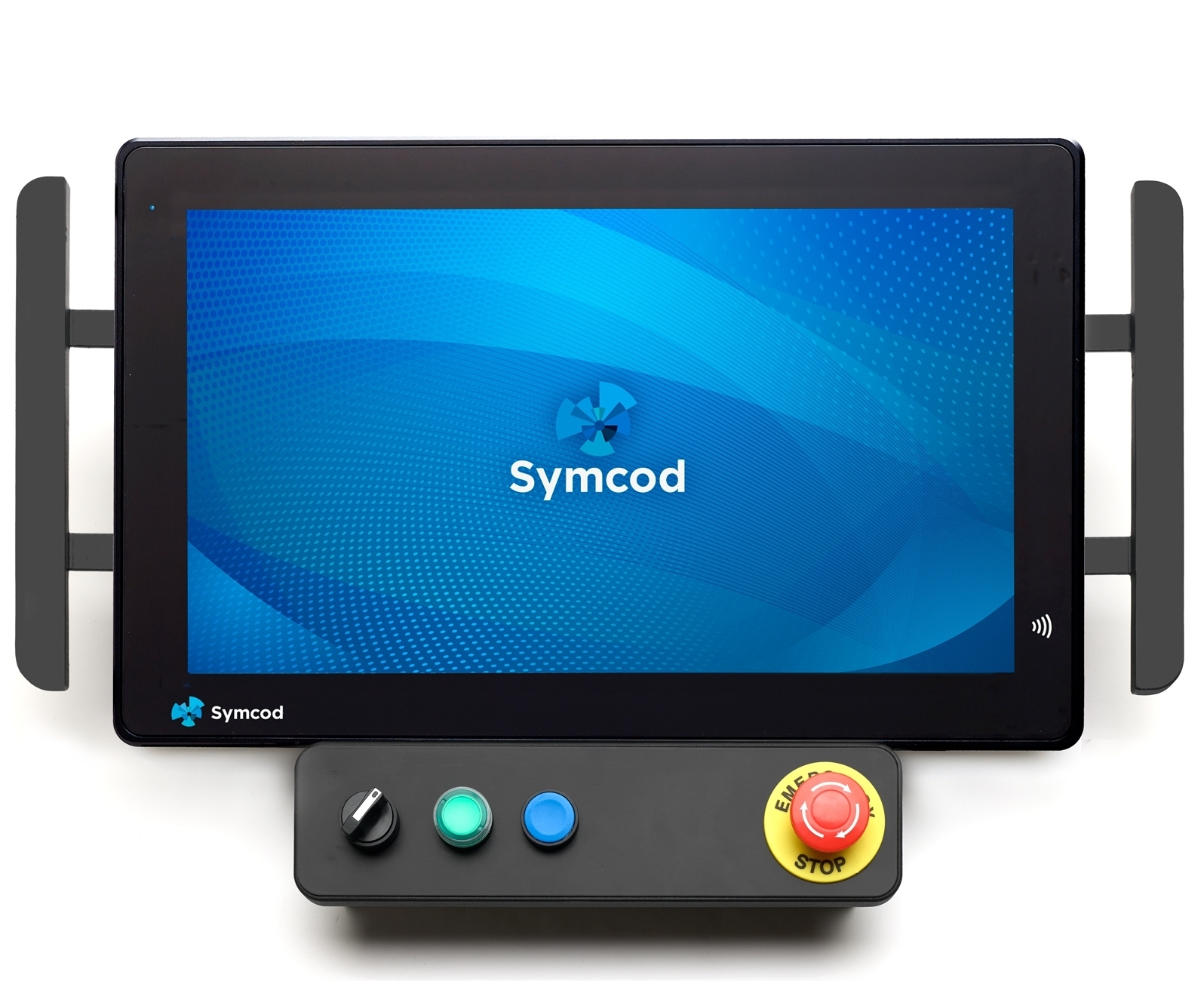

  • Industrial control button module: Start / Restart / Emergency Stop, and more



  • Side handles: for easier handling and ergonomic installation



  • Custom client logo: tailor-made OEM solution

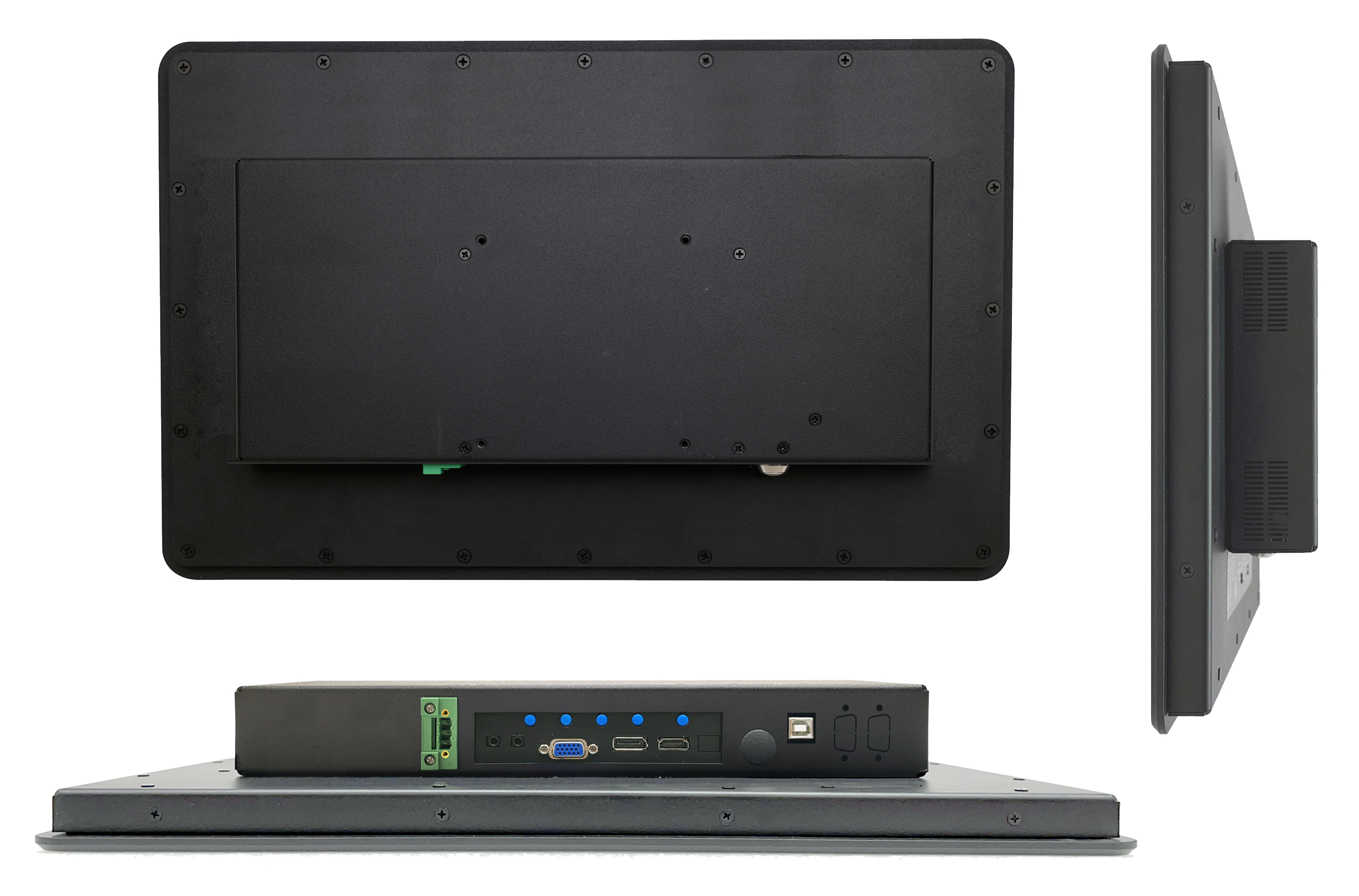

  • Panel mount or support stand installation



  • Power connection via AC power block or 24VDC terminal block

Technical Specifications

Model

W185M-DP

Type

Industrial Touchscreen Monitor

Ingress Protection

IP50 on stand / IP66 front panel mounted*

Display

18.5″ Projected Capacitive Touchscreen (1280×800) – 350 nits

Glass

3mm Tempered Glass

Power supply

AC with external 120/240 VCC 60/50 Hz, power supply not included,
at least 90W recommended / 24 VCC terminal block

Operation Conditions

-20 °C* to 55 °C (-4 °F* to 131 °F), 20% to 80% Relative Humidity (Non-Condensing)

Casing

Aluminium / VESA 100 Mounting or Panel Mounting

Weight

4.94 kg / 10.9 lb

Certifications

CSA / CE

Warranty

2-Year Standard / Optional 3-Year Extended

*certains conditions required

Ideal Industrial Applications

  • Operator workstations on assembly or packaging lines
  • Displaying production drawings and technical plans
  • Screen extension for displaying more operational data
  • Rugged remote industrial systems combined with an embedded PC
  • Local SCADA supervision on the production floor
  • Industrial KVM access terminals
W156M-touch

The Industrial Monitor Designed for Real-World Environments

The W185M-DP is engineered to integrate closely with your machinery, offering the ruggedness needed to keep up with your industrial operations.
